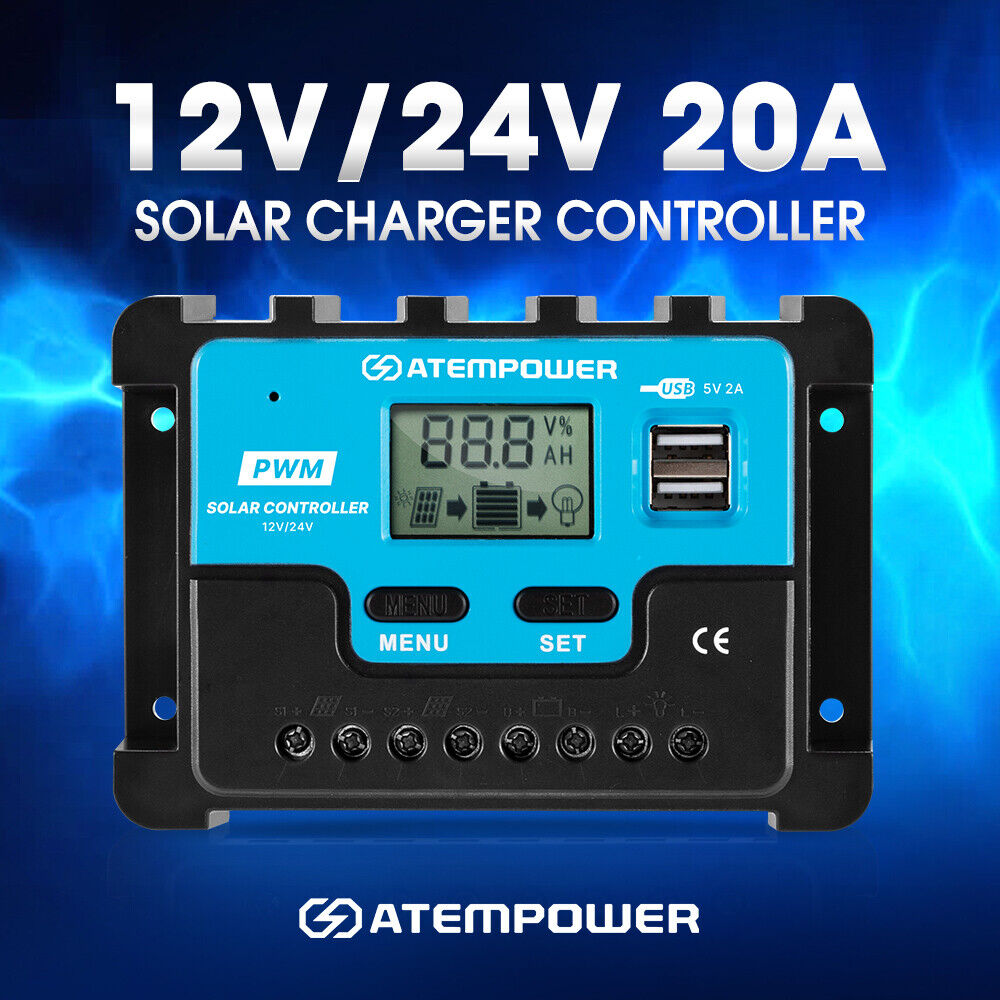

20A Lithium Battery Solar Charge Controller 12V 24V

20A Lithium Battery Solar Charge Controller 12V 24V

$45.99 AUD
$45.99 AUD
Sale Sold out
If you are looking for a solar controller to charge your battery and keep unnecessary damages at bay, please look no further, this PWM solar controller must be the one you are looking for. This solar controller is ideal for off-grid applications on 12V-24V systems and it uses a 3-stage algorithm---bulk, absorption, and float---to increase the lifespan and performance of batteries accordingly to battery type lead acid battery(flooded, GEL, and AGM) and lithium battery ( Li(LiCoMn)O2 and LiFePO4). And this is further enhanced by the programmable voltage it integrates. In addition, this solar controller can be connected to 2 solar panels, which can increase charging efficiency. It also offers a built-in LCD display, through which you can have a real-time view of the system status. And an array of built-in protections-low/over voltage, short circuit, overcharge/over-discharge, overcurrent, overload, and reverse polarity protection-offer an extra layer of protection.

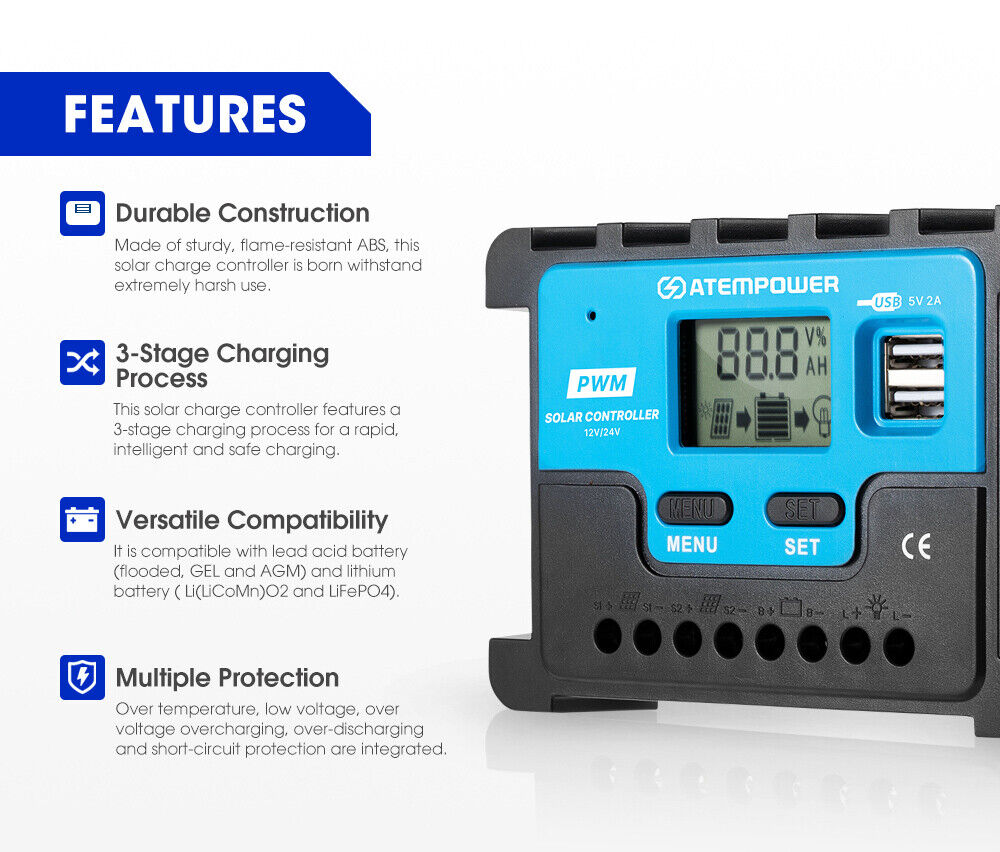

Features

  • Ultra Durability: ABS housing enables the dust-proof controller to resist fire, and zinc alloy terminals enhance structural strength with better conduction performance.
  • 3-Stage Charging: A PWM 3-stage algorithm, bulk, absorption, and 100% float charge, is designed to enhance efficiency and ensure battery lifespan.
  • Super Compatibility: It is compatible with lead acid batteries (flooded, GEL, and AGM) and lithium batteries ( Li(LiCoMn)O2, and LiFePO4).
  • Electronic Protection: Low/over voltage, short circuit, overcharge/over-discharge, overcurrent, overload, and reverse polarity protection are integrated.

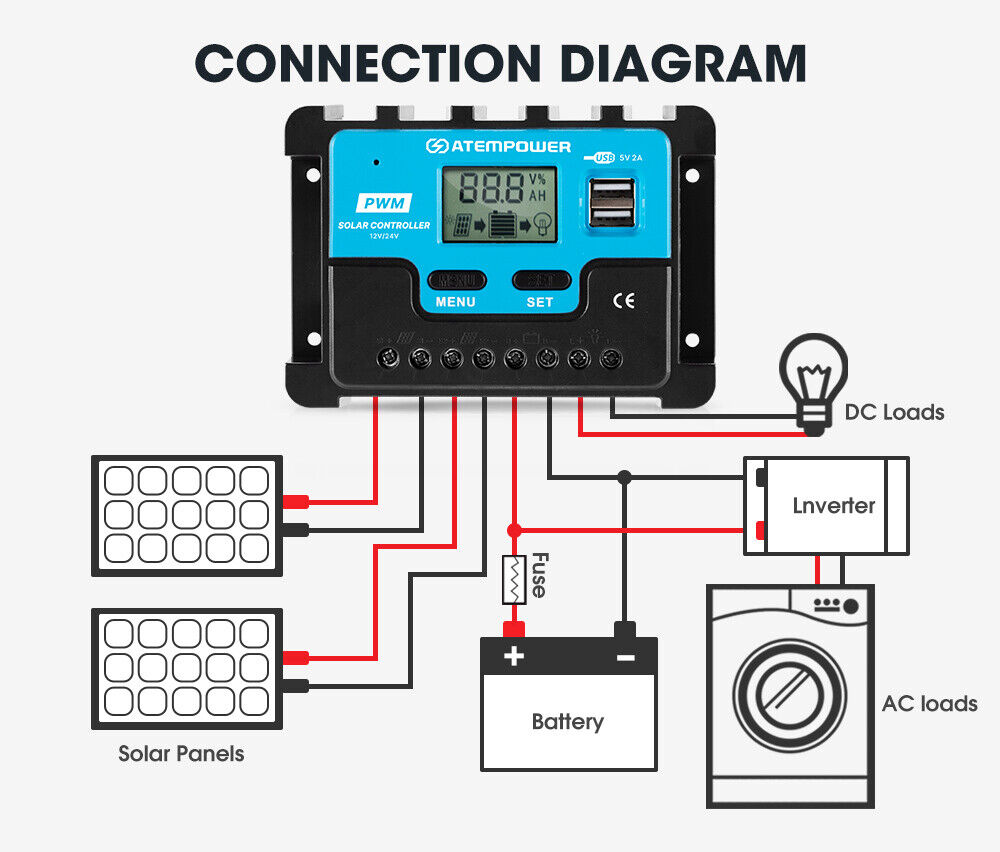

  • Dual Solar Connection: This solar controller is designed to be connected to 2 solar panels simultaneously to increase charging efficiency.
  • Programmable Voltage: The voltage of this PWM solar controller is programmable to ensure the safety and longevity of different batteries.
  • Strengthened Boards: Our PCB and backplane boards are 1.2mm and 1mm in thickness which is fracture proof VS 0.8mm and 0.6mm offered by competitors.

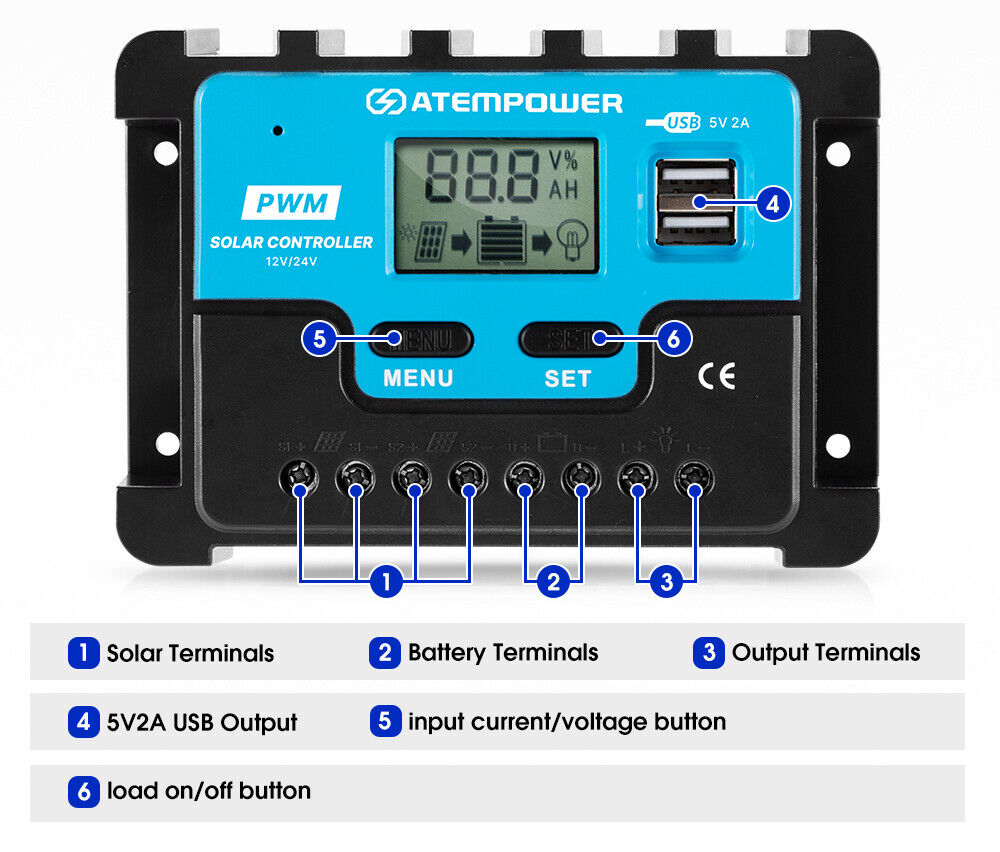

  • Simple Operation: LCD display provides a real-time view, 2 buttons for easy setting, and 2 USB ports to power your lamps or works as a phone charger.
  • Temperature Compensation: This mechanism is designed to automatically adjust charge & discharge voltage to enhance the battery’s lifespan.



Specifications

Input Voltage: 9V-32V
Battery Voltage: 12V/24V(Auto Distinguish)
Rated Charge Current: 20A
Rated Discharge Current: 20A
Maximum Solar Panel Voltage: <55V
Float Voltage For AGM (Default): 13.8V (Programmable)
Cut-Off Voltage For AGM(Default): 14.4V(Programmable)
Discharge Recovery Voltage For AGM (Default): 12.6V (Programmable)
Battery Type: Lead Acid Battery(Flooded, GEL and AGM) & Lithium Battery(Li(LiCoMn)O2 and LiFePO4)
USB Port: 5V/2A
Standby Current: <10.7mA
Ambient Temperatures: -20°C-+55°C
Charge Mode: PWM
Dust-proof: Yes
Warranty: 1 Year
