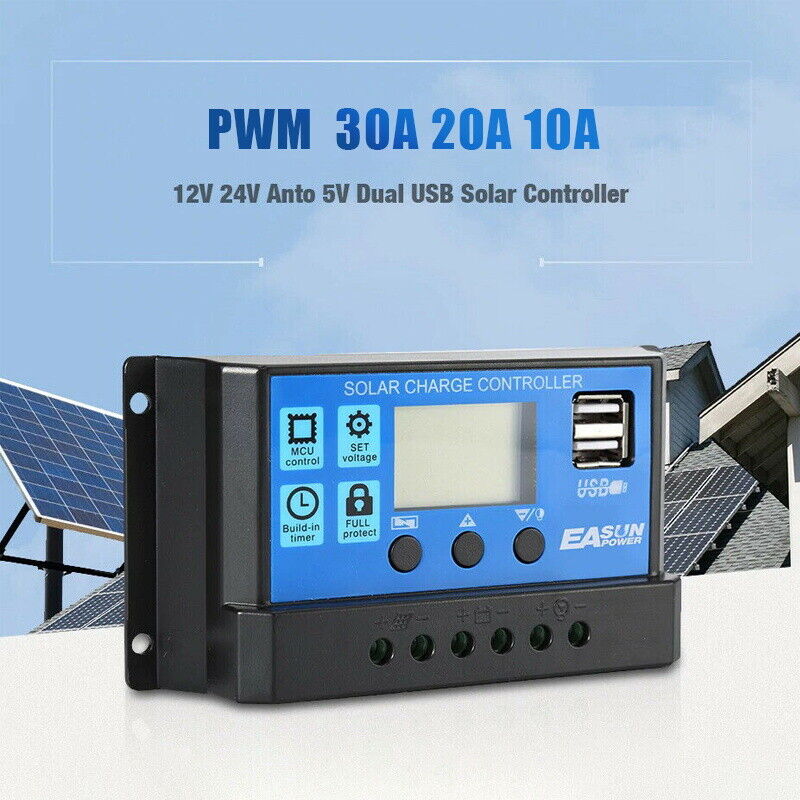

10A/20A/30A 12V-24V Solar Panel Regulator Charge Controller

Features:

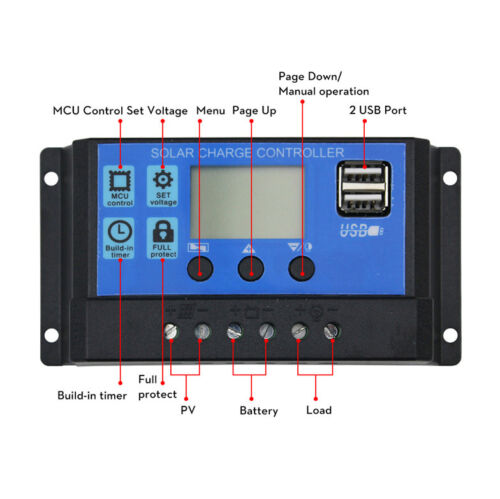

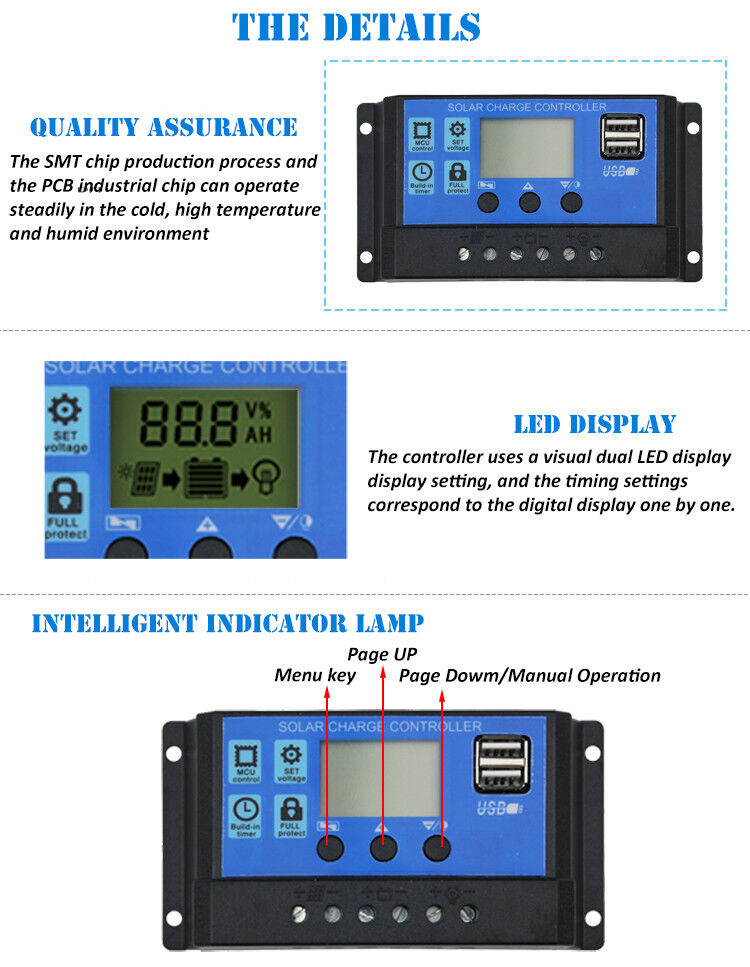

• One-key setting, digital display, auto memory function.
• Fully 4-stage PWM charge management.

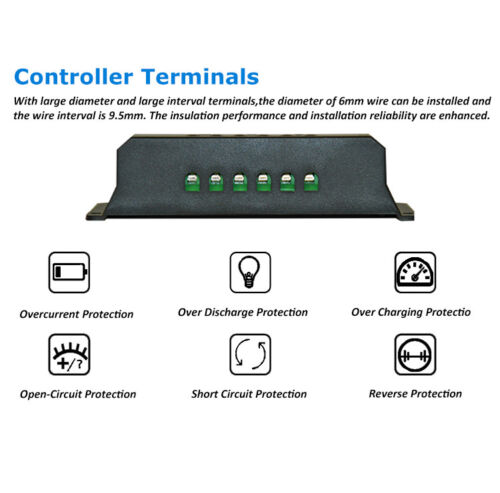

•  short-circuit protection, open-circuit protection, reverse polarity protection, over-load protection
• Dual reverse current protection, low heat production.
• With double USB ports charge
• The Regulator is only suitable for  batteries, AGM, GEL
• It is not suited for nickel metal hydride, lithium ions, or other batteries



Specifications:

• Rated Voltage: 12V 24V Auto
• Application: Solar System Controller
• Rated Current: 10A/20A/30A
• Max. PV Voltage for 12V battery: 23V
  Max. PV Voltage for 24V battery: 46V
• Max. PV Input Power:

  • 10A: 130W (12V) 260W (24V)
  • 20A: 260W (12V) 520W (24V)
  • 30A: 390W (12V) 780W (24V)
• Size: 133 x 70 x 34mm

Make sure your battery has enough voltage for the controller to recognize the battery type before installation.
The battery cable should be as short as possible to minimize loss.
The regulator is only suitable for  batteries: OPEN, AGM, GEL
It is not suited for nickel metal hydride, lithium ions, or other batteries.
The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
